Sugon 3005 Toroidal Transformer (160W) Original

Sugon 3005 Toroidal Transformer (160W) Original

Specifications

• Model : SUGON 3005
• Power : 160W
• Input: 220V~50/60Hz
• Outputs (S): 0V-7V-24V-36V
• 12V-0V-12V (Blue, Black, Blue wires)
• Weight : 1.93 KG

Feature :-

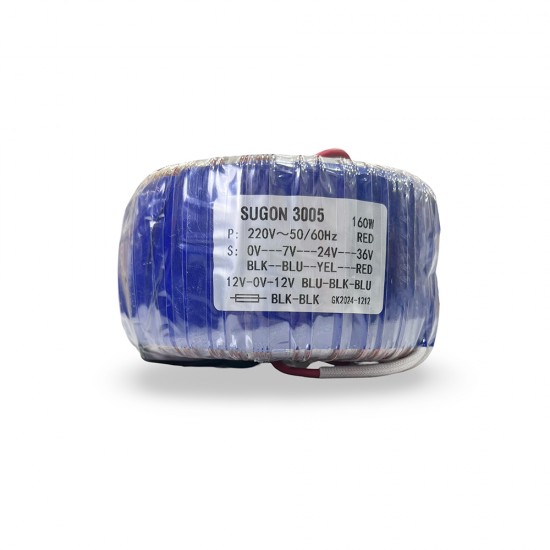

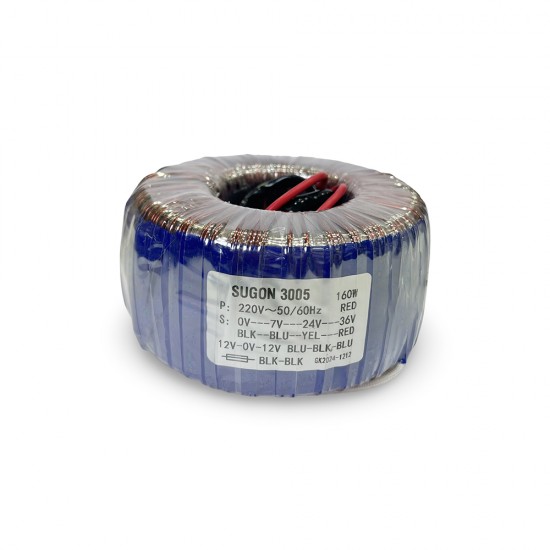

• Power: A power rating of 160W and a primary input of 220V~50/60Hz are clearly indicated on the label. Additionally, it describes several secondary windings that provide different voltage outputs: 12V-0V-12V (using Blue, Black, and Blue wires, respectively) and 0V-7V-24V-36V (using Red, Black, Blue, and Yellow-Red wires), with extra Black-Black wires for an additional winding or connection point.

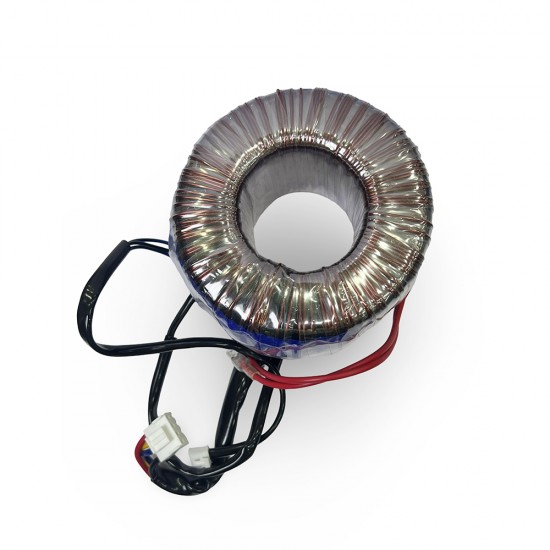

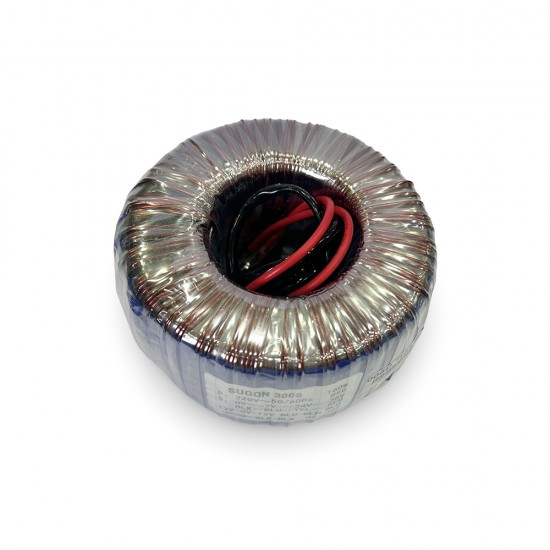

• Toroidal Design: Because of its unique ring-shaped core and tightly wrapped coils, this toroidal transformer has a small size, low electromagnetic interference (EMI), less noise, and high efficiency.
• Common Use: The Sugon 3005 series DC power supplies, that provide stable and adjustable DC voltage and current outputs and are commonly used in electronics repair, especially for gadgets like computers and mobile phones, depend heavily on this kind of transformer.
• Features of the Power Supply: This transformer's power supplies have intelligent cooling, multiple memory modes for storing settings, adjustable voltage and current, and overload protection.


Packing Content :-

1 x Sugon 3005 Toroidal Transformer (160W)
